Technical validation
We review the selected RK3588J configuration, interfaces and required software before project delivery.
Industrial ARM computer · Edge AI · −40°C to +85°C

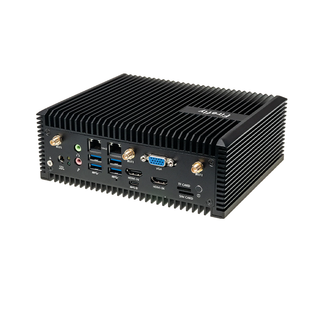

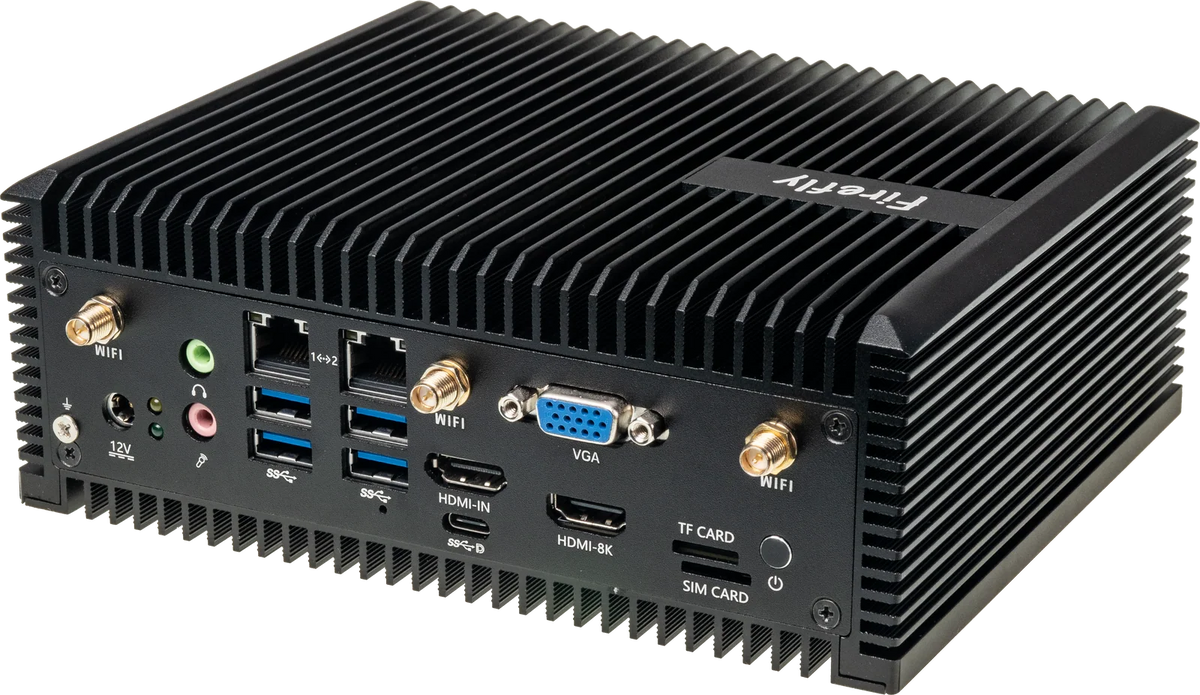

Firefly EC-A3588JQ
Fanless RK3588J industrial AI computer with HDMI input, 6 TOPS NPU and extended-temperature operation.
EC-A3588JQ is a compact industrial ARM computer powered by the Rockchip RK3588J (up to 1.6 GHz). Built for edge AI, machine vision, industrial automation and IoT gateways, it combines a 6 TOPS NPU with 4K HDMI input, up to 8K video output, dual Gigabit Ethernet, serial interfaces and CAN.
Choose the manufacturer’s 4 GB/32 GB, 8 GB/64 GB or 16 GB/128 GB factory RAM/eMMC configuration. Minidis can help assess OS compatibility, software deployment, wireless expansion and project integration. Pricing and availability are confirmed by quotation.
◈
RK3588J processor with up to 6 TOPS NPU
℃
−40°C to +85°C industrial operating range
▣
4K/60 HDMI input and up to 8K video output
⌘

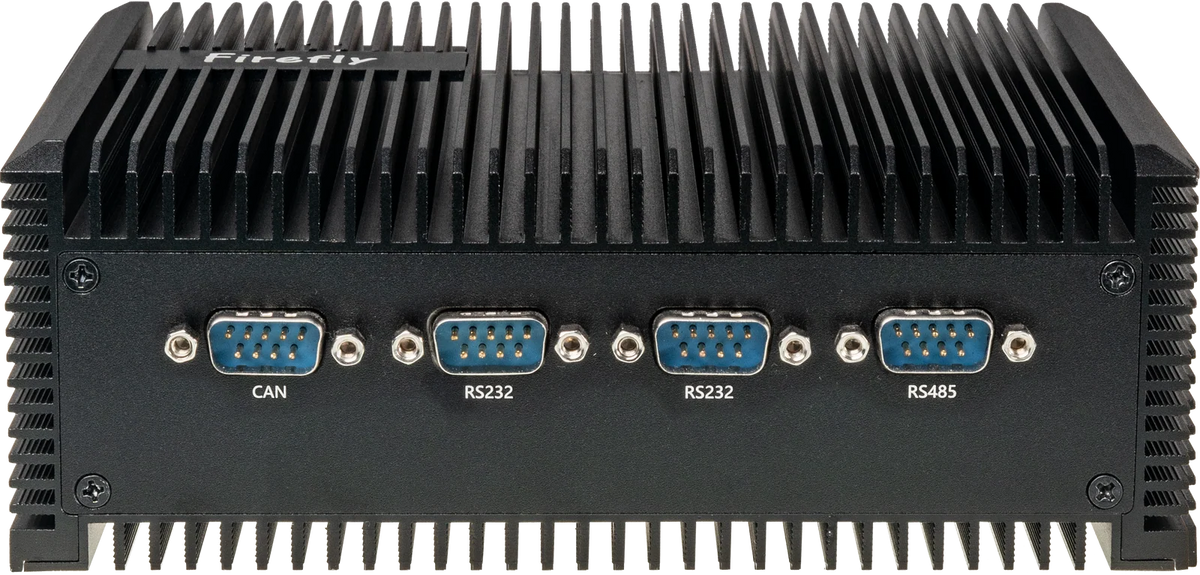

2× Gigabit Ethernet, RS232, RS485 and CAN
Factory RAM + eMMC configuration
Firefly industrial ARM computers by Minidis
Industrial Edge AI hardware, prepared for deployment
The EC-A3588JQ combines on-device AI acceleration, video ingest and industrial connectivity with an extended temperature range. Minidis helps professional teams evaluate, configure and deploy the correct factory variant.
⚙
In-house preparation
Minidis can prepare operating systems, drivers, customer images and deployment kits before dispatch.
🇪🇺
European B2B partner
One contact for procurement, integration support, documentation and repeat industrial deployments.
◉
Machine vision & video ingest
The 4K/60 HDMI input and RK3588J video engine support embedded video capture and processing projects; validate the required stream pipeline.
◈
Edge AI inference
A 6 TOPS NPU supports local AI workloads such as object recognition and visual analytics using compatible models and software.
⌘
Industrial automation & gateways
Dual Gigabit Ethernet, RS232, RS485 and CAN make this ARM platform relevant for connecting industrial equipment and edge applications.
OS and software deployment
Ask Minidis about Ubuntu, Debian, Android or Buildroot preparation and the validation of your software stack.
Wireless and cellular integration
Wi-Fi 6, Bluetooth 5.0 and 4G/5G expansion are supported by the platform. Module fit and included accessories must be confirmed per configuration.
Project kitting and logistics
Combine the computer with approved power adapters, accessories, labels and documentation for European rollouts.
Which RAM and storage configurations can I select?
The current listed factory combinations are 4 GB RAM with 32 GB eMMC, 8 GB with 64 GB eMMC, and 16 GB with 128 GB eMMC. These are bundled configurations, not independent RAM and eMMC selections.
What is the difference between RK3588 and RK3588J?
The EC-A3588JQ uses the industrial RK3588J processor, specified at up to 1.6 GHz and with a −40°C to +85°C operating temperature range. The commercial RK3588 variant has different clock-speed and temperature specifications.
Does the EC-A3588JQ have an HDMI input?

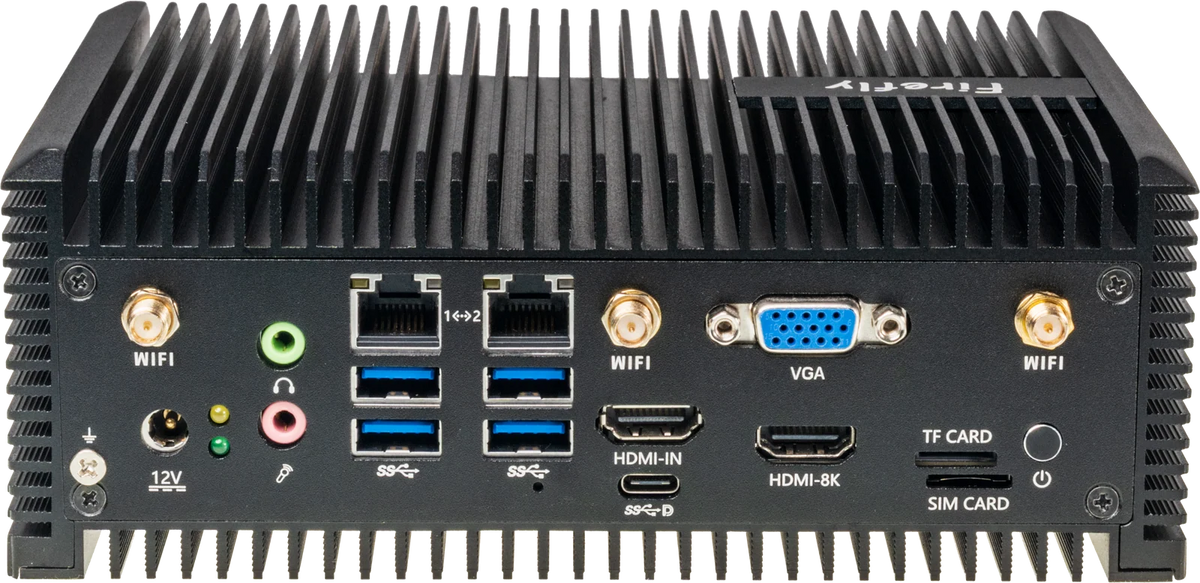

Yes. The published interface specification lists one HDMI input supporting up to 4K at 60 fps. It also provides HDMI 2.1, USB-C DisplayPort and VGA outputs. A particular simultaneous video encoding workflow should be validated with your software.
Are Wi-Fi, Bluetooth and 5G included?
The platform supports Wi-Fi 6, Bluetooth 5.0 and 4G/5G expansion, but this does not mean that every module, SIM interface or antenna is included with a particular factory package. Minidis can confirm the required connectivity options.
Can I install an NVMe SSD in the M.2 slot?
The manufacturer specifies one M.2 2242 SATA 3.0 SSD expansion connection. NVMe support is not documented for this slot and should not be assumed.
What power supply does the system require?
The published input is 12 V DC (5.5 × 2.1 mm connector) with ±5% voltage tolerance. A wide-range vehicle power input is not specified for this industrial model.
Which operating systems can Minidis support?
The platform documentation lists Android, Ubuntu, Debian and Buildroot, subject to BSP and application requirements. Minidis can help assess installation and driver compatibility for your project.
How do I obtain pricing and lead time?
Choose a factory configuration and quantity, then use Request a quote. Minidis will confirm current commercial pricing, availability, configuration details and European delivery options.
Firefly EC-A3588JQ industrial RK3588J computer for Edge AI
The Firefly EC-A3588JQ is an industrial embedded computer built around the Rockchip RK3588J ARM processor. It combines a 6 TOPS neural processor, HDMI input, industrial serial I/O and dual Gigabit Ethernet in a fanless enclosure for machine vision, edge analytics, IoT gateways and industrial control applications.
Minidis supports European business customers with configuration advice, validation, software preparation and project-based sourcing. Choose a RAM/eMMC configuration above and request a quotation for your deployment.
Need to confirm compatibility before purchasing?
Tell us about your camera, video stream, CAN/serial, wireless or software requirements. We can review the integration and advise on a suitable configuration.
