Pre-configured IoT gateway

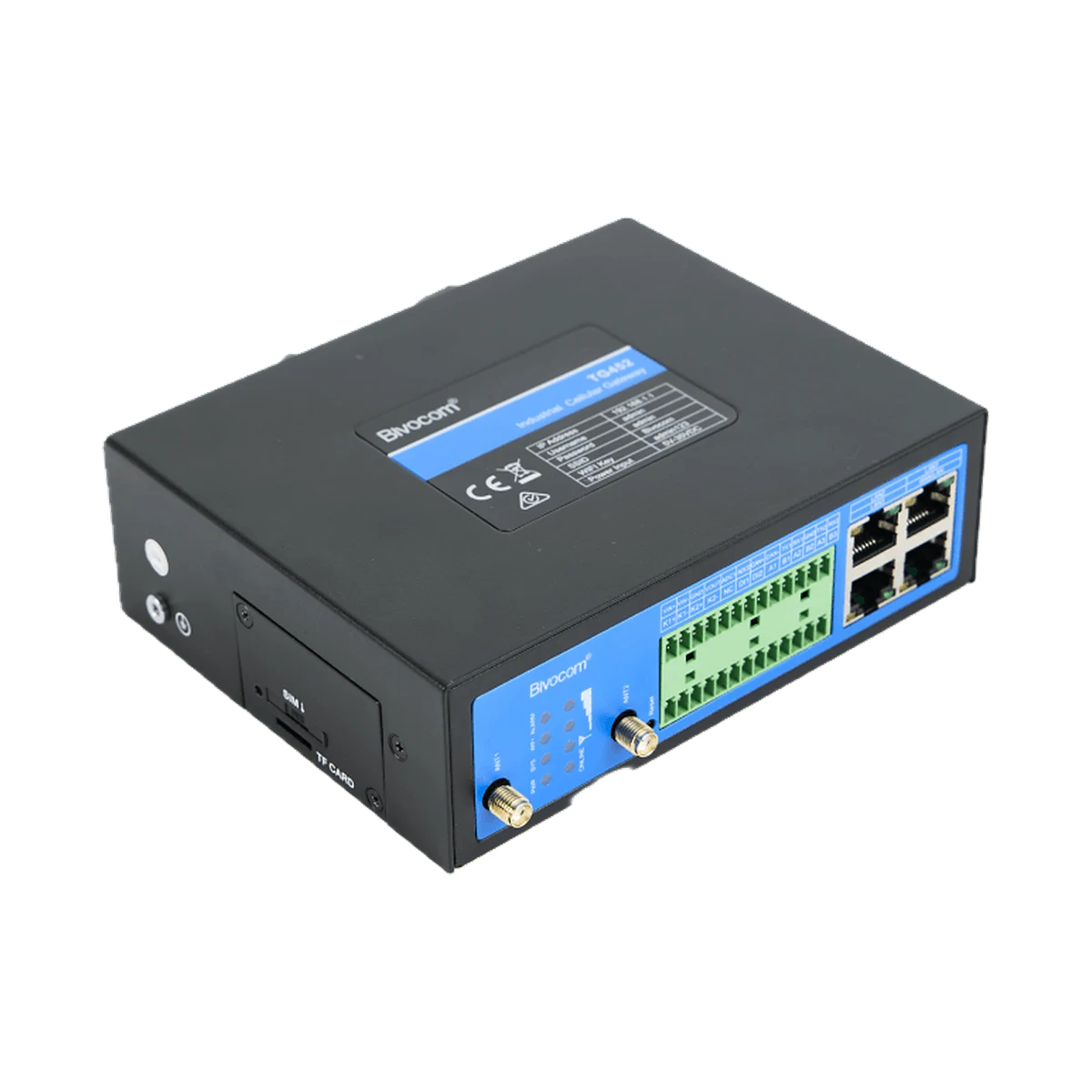

Bivocom TG452 LoRa Gateway 256MB RAM / 1GB Flash
Industrial LoRa and 4G connectivity gateway for field and IoT deployments.
Overview
Product overview
The Bivocom TG452 LoRa Gateway combines 4G LTE, LoRa, Ethernet and industrial serial interfaces in a compact edge gateway for remote monitoring, telemetry and industrial IoT deployments.
The platform runs OpenWrt Linux and supports MQTT, Modbus RTU/TCP, TCP/UDP and JSON, with VPN, firewall and SSH capabilities for secure field connectivity.
Highlights
Key features
- 4G LTE Cat 4 + LoRa connectivity for industrial IoT
- 4× RJ45 Ethernet, 2× RS232 and 3× RS485
- MQTT, Modbus RTU/TCP, TCP/UDP and JSON protocol support
- OpenWrt Linux with VPN, firewall and SSH
Technical details
Technical specifications
| SKU | BIV-TG452-LORE-1WG |
|---|---|
| CPU / platform | 32-bit ARM Cortex-A7 |
| Memory | 256MB DDR3 |
| Storage | 1GB flash + MicroSD up to 32GB |
| Networking | 4G LTE Cat 4; LoRa 850–931MHz or 410–490MHz (optional); 4× RJ45 10/100Mbps; optional Wi-Fi and GNSS/GPS |
| I/O | 2× RS232, 3× RS485, 2× DI, 2× relay output; optional 2× 12-bit ADC and CAN |
| Operating system | OpenWrt Linux |
| Temperature | –35°C to +75°C |
| Dimensions | 145 × 114 × 45 mm |
Documentation
Product datasheet
View or download the complete technical datasheet for specifications, interfaces, environmental ratings and mechanical details.
